General Information

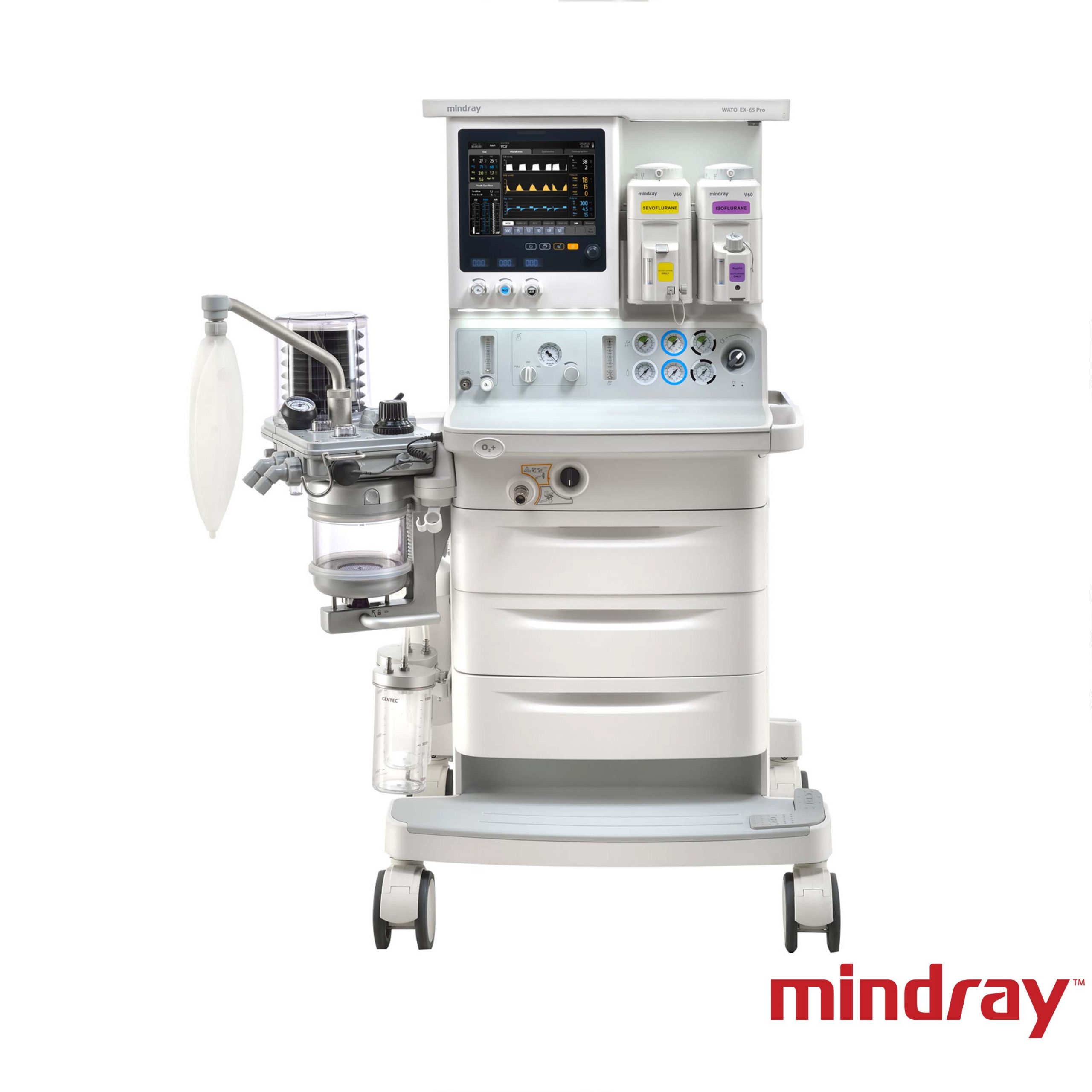

For the last decade, Mindray has continued to work closely with clinicians across the globe, to recognize and understand the clinical challenges encountered every day and overcome them with new innovative and intuitive solutions. With this in mind, Mindray is now proud to bring you the flagship of the WATO series, the WATO EX-65 Pro.

  • New ventilation mode: SIMV-VG, CPAP/PS, APRV
  • Electronic mixer.
  • Flow pause function.
  • Backup Flow Control System (BFCS)
  • Optional HFNC for auxiliary O2 port.
  • AA prediction function.
  • Full range of monitoring modules: AG, BIS, NMT.

Specifications

Features and specifications:

  • 15-inch color main screen, touch, 1024 x 768 resolution.
  • The system generates and pressurizes with Oxygen or Air.
  • Automatically compensate for leaks and pipe impedance.
  • Support 10 modes (modes): Manual, VCV, PCV, SIMV-PC, SIMV-VC, SIMV-VG, CPAP/PS, ACGO, PCV-VG, APRV
  • Monitor 10 parameters, 3 waveforms, 3 loops.
  • Alarm setting: High/Low for parameters: Vt, Paw, MV, FiO2, Apnea.
  • Emergency Oxygen Flush Button.
  • Mechanical O2-N2O Link System.
  • N2O auto cut-off function when O2 pressure is lower than 100kPa.
  • The mechanical ACGO switch supports ACGO mode.
  • Electronic main flowmeter. Accuracy ±10 % of true value.
  • Backup flow control system: Mechanical control knob and flowmeter column. O2 adjustment from 1 to 10L/min
  • 15L/min auxiliary flowmeter (Air/Oxygen).
  • APL quick relief valve
  • Support 2 vaporizer ports, Selectatec / Plug-in standard.
  • Support anesthetic agents: Halothane, Enflurane, Isoflurane, Sevoflurane.
  • Dimensions (mm): (HxWxD) 1370 x 780 x 690.
  • Weight: 145kg.
  • Dimensions of the workspace (mm): 545 x 310 x 850.
  • Top shelf size: 1635 cm2
  • Wheel diameter: 125mm, with central locking
  • There are 3 drawers with lock, size 130mm high, 415mm wide, 320mm deep.
  • LED worklight: Off, Low, High.
  • Power supply:

220-240 Vac, 50/60 Hz, 6A max.

100-240 Vac, 50/60 Hz, 7A max

  • Backup battery: Li-Ion, 10.95 VDC, 4.5Ah. Use at least 90 minutes.
  • Output of auxiliary socket (up to 4): 3A.
  • Supported ports: RS-232C, DB9, Ethernet (RJ-45), USB, VGA port

Anesthesia machine parameters:



  • Support 2 evaporator connection ports, Selectatec / Plug-in standard.
  • Anesthesia: Halothane, Isoflurane, Sevoflurane, Desflurane.
  • Volume of breathing block: 2600ml (ventilator) or 1800ml (manual).
  • CO2 absorption tank capacity: 1500ml with CO2 bypass function
  • Supports 2 types of absorbers: Pre-pak or Loose-Fill.
  • Water trap in the exhalation branch with a capacity of 6ml
  • Inspiratory pressure measurement limit: -20 ~ 100 cmH2O. Accuracy: ± 2% FS.
  • 2 Flow sensors of differential pressure at the inspiratory and exhalation ports.
  • Oxygen sensor type Galvanic, FiO2 18%-100%. ± 2.5%. Response ≤ 20s.
  • Diameter of connectors: 22mmOD/15mmID. Anesthesia outlet port: 30mm OD
  • Switch to switch 2 modes of mechanical ventilation – bag breathing.
  • Valve APL SP, 5~70 cmH2O. Accuracy ±3 cmH2O. Response ≥ 30 cmH2O.
  • All parts of the exhalation end are absorbable (except the sensors).
  • Expansion of the whole respiratory system: ≤ 4 mL/cmH2O.
  • Breathing system impedance: ≤ 6 cmH2O (both Automatic and Manual mode).
  • System leakage: ≤ 60mL @ 3 kPa.

Ventilation settings:



  • Patient Size: Adult, Child, Newborn.
  • Tidal volume: 20~1500 mL (volume mode), and 5-1500 mL (pressure mode)
  • Pinsp: 5~80 cmH2O (1cmH2O adjustable).
  • Plimit: 10~100cmH2O (1cmH2O adjustable).
  • ∆Psupp 3~60 cmH2O (1cmH2O adjustable).
  • Respiration Rate: 2 ~ 100 bpm (1 bpm adjustable).
  • I:E: 4:1 ~ 1:8 (0.5 adjustable).
  • Apnea (Tip:Ti): OFF, 5% – 60% (increase 5%).
  • Tinsp: 0.2 – 5 s (increase by 0.1 s).
  • Trigger window: 5% – 90% (increase 5%).
  • Trigger flow: 0.2 ~ 15 L/min (increase 0.5L/min).
  • Pressure trigger: -20 ~ -1 cmH2O (increase 1 cmH2O)
  • Exp%: 5% – 60% (increase by 5%).
  • Average rate: 2 – 60 bpm (1 bpm increment).
  • Tslope: 0.0 – 2.0 s (increase by 0.1 s).
  • Apnea I:E : 4:1~1:8 (increase by 0.5).
  • ∆Papnea: 3 – 60 cmH2O (1 cmH2O increase)
  • PEEP: OFF, 3~30 cmH2O (1cm H2O increase). Electronic Control.
  • Inlet gas pressure limit: 280 kPa to 600 kPa.
  • Maximum flow rate: 180L/min + Fresh gas flow.

Monitoring parameters:

  • Minute Volume: 0~100 L/min.
  • Tidal volume:0 ~ 3000 mL/min.
  • FiO2: 18% – 100%.
  • Paw: -20 ~ 120 cmH2O.
  • PEEP: 0 ~ 70 cmH2O.
  • Resistance (R): 0 ~ 600 cmH2O/(L/s).
  • Compliance (C): 0 ~ 300 ml/cmH2O.
  • Rate: 0 ~ 120 bpm.
  • Trend: 48 hours.
  • Event log: 500 events.
