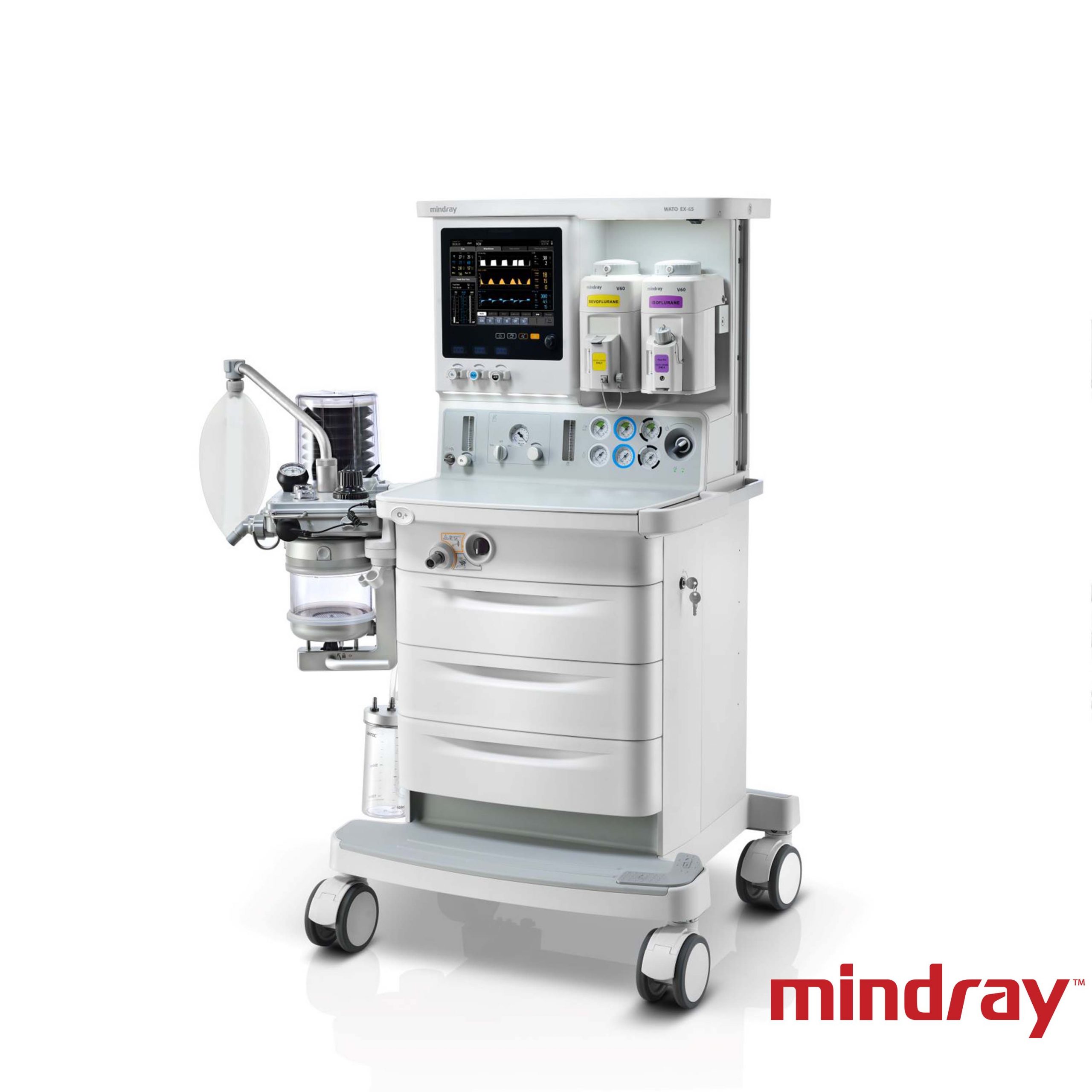

MINDRAY Wato EX-65

General specifications:

• 15-inch color main screen, touch, 1024 x 768 resolution.
• Oxygen drive gas system.
• Automatically compensate for leaks and pipe impedance.
• Support 9 ventilation modes: Manual, VCV, PCV, SIMV-PC, SIMV-VC, SIMV-VG, CPAP/PS, ACGO, PCV-VG.
• Monitor 10 parameters, 3 waveforms, 3 loops.
• Alarm setting: High/Low for parameters: Vt, Paw, MV, FiO2, Apnea.
• Emergency Oxygen Flush Button.
• Mechanical O2-N2O Link System (O2-N2O Link system)
• N2O auto-off function when O2 pressure is lower than 100kPa.
• The mechanical ACGO switch supports ACGO mode.
• 15L/min auxiliary flow column (Air/Oxygen).
• Electronic master flowmeter. Accuracy ±10 % of true value.
• APL quick relief valve
• Support 2 evaporator connection ports, Selectatec / Plug-in standard.
• Support anesthetic agents: Halothane, Isoflurane, Sevoflurane, Desflurane.
• Dimensions (mm): (HxWxD) 1370 x 780 x 690.
• Weight: 145kg.
• Dimensions of the workspace (mm): 545 x 310 x 850.
• Top shelf size: 1635 cm2
• Wheel diameter: 125mm, with central locking
• There are 3 drawers with lock, size 130mm high, 415mm wide, 320mm deep.
• LED worklight: Off, Low, High.
• Power supply:

220-240 Vac, 50/60 Hz, 6A max.

100-240 Vac, 50/60 Hz, 7A max

• Backup battery: Li-Ion, 10.95 VDC, 4.5Ah. Use at least 90 minutes.
• Output of auxiliary sockets (up to 4): 3A.
• Supported ports: RS-232C, DB9, Ethernet (RJ-45), USB, VGA port

Anesthesia machine parameters:

• Support 2 vaporizer ports, Selectatec / Plug-in standard.
• Anesthesia: Halothane, Isoflurane, Sevoflurane, Desflurane.
• Volume of breathing circuit: 2600ml (ventilator) or 1800ml (manual).
• CO2 absorption canister capacity: 1500ml with CO2 bypass function
• Supports 2 types of canister: Pre-pak or Loose-Fill.
• Water trap in the exhalation branch with a capacity of 6ml
• Inspiratory pressure measurement limit: -20 ~ 100 cmH2O. Accuracy: ± 2% FS.
• 2 Flow sensors of differential pressure at the inspiratory and expiratory ports.
• Galvanic-cell Oxygen sensor, FiO2 18%-100%. ± 2.5%. Response ≤ 20s.
• Diameter of connectors: 22mmOD/15mmID. Anesthesia outlet port: 30mm OD
• Mechanical switch for 2 modes of mechanical ventilation – bag breathing.
• Valve APL SP, 5~70 cmH2O. Accuracy ±3 cmH2O . Responsive ≥ 30 cmH2O.
• All parts of the exhalation end are autoclavable (except the sensors).
• Compliance of the whole respiratory system: ≤ 4 mL/cmH2O.
• Breathing system impedance: ≤ 6 cmH2O (both Automatic and Manual mode).
• System-wide leakage: ≤ 60mL @ 3 kPa.

Ventilation settings:

• Patient Size: Adult, Child, Neonate.
• Tidal volume: 20~1500 mL (volume mode), and 5-1500 mL (pressure mode)
• Pinsp: 5~80 cmH2O (1cmH2O increment).
• Plimit: 10~100cmH2O (1cmH2O increment).
• ∆Psupp 3~60 cmH2O (1cmH2O increment).
• Respiration Rate: 2 ~ 100 bpm (1 bpm increment).
• I:E: 4:1 ~ 1:8 (0.5 increment).
• Apnea (Tip:Ti): OFF, 5% – 60% (5% increment).
• Tinsp: 0.2 – 5 s (increase by 0.1 s).
• Trigger window: 5% – 90% (5% increment).
• Trigger flow: 0.2 ~ 15 L/min (0.5L/min increment).
• Pressure trigger: -20 ~ -1 cmH2O (1 cmH2O increment)
• Exp%: 5% – 60% (increase by 5%).
• Average rate: 2 – 60 bpm (1 bpm increment).
• Tslope: 0.0 – 2.0 s (0.1 s increment).
• Apnea I:E: 4:1~1:8 (0.5 increment).
• ∆Papnea: 3 – 60 cmH2O (1 cmH2O increment)
• PEEP: OFF, 3~30 cmH2O (1cm H2O increase). Electronic Control.
• Inlet gas pressure limit: 280 kPa to 600 kPa.
• Maximum flow rate: 120L/min + Fresh Gas flow.

Monitoring parameters:

• Minute Volume: 0~100 L/min.
• Tidal volume:0 ~ 3000 mL/min.
• FiO2: 18% – 100%.
• Paw: -20 ~ 120 cmH2O.
• PEEP: 0 ~ 70 cmH2O.
• Resitance (R): 0 ~ 600 cmH2O/(L/s).
• Compliance (C): 0 ~ 300 ml/cmH2O.
• Rate: 0 ~ 120 bpm.
• Trend: 48 hours.
• Event log: 500 events.
