General Information

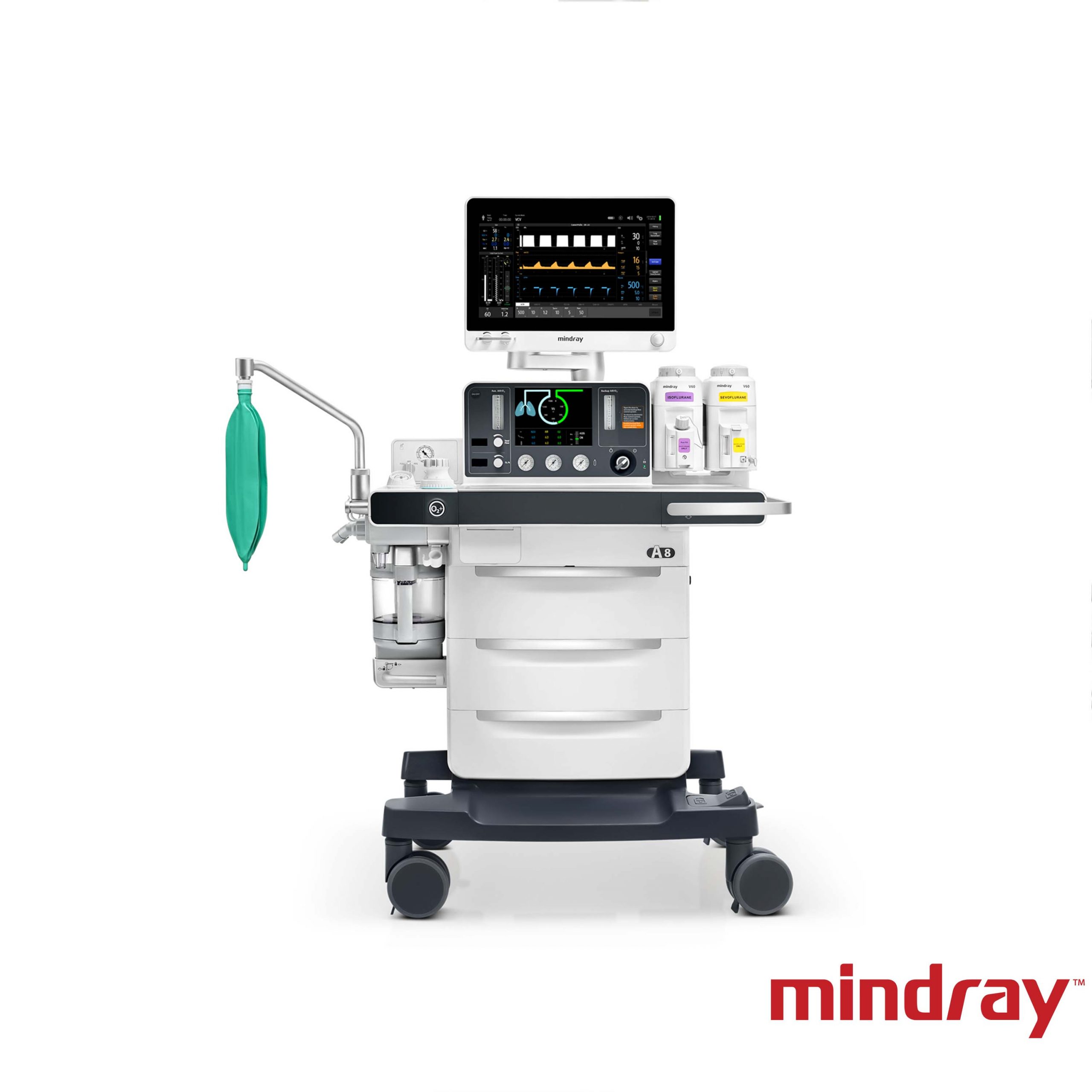

Mindray A8 is the newest, state-of-the-art anesthesia machine that introduces many advanced features:

  • Volume Exchanger (VE) breathing circuit that is more compact and precise than the traditional bellow.
  • 18.5 inch touchscreen with 340-degree rotating arm.
  • 8.4 inch auxiliary monitoring screen.
  • ICU-level ventilation mode: APRV and AMV.
  • Full range of monitoring option: CO2, Anesthesia gas, BIS, NMT, Transpulmonary pressure monitoring.

Specifications

Detailed specifications:

  • Dimensions (mm): 1490 x 910 x 705.
  • Weight: ~160kg.
  • 18.5 inch color touch screen, 1920 * 1080 resolution, 360 degree rotation, 60 degrees front and back tilt.
  • 8.4-inch color secondary display. Displays gas exchange indicator, gas supply pressure and AGSS unit status.
  • Dimensions of working space (mm): 850 x 590 x 325. Load capacity 30kg.
  • Wheel diameter: 150mm, with central locking pedal.
  • There are 3 drawers with lock, size 135mm high, 440mm wide, 385mm deep.
  • Standard rail GCX, load bearing 27kg at a distance of 0.41m, 130mm x 130mm x 485 mm.
  • The arm of the breathing bag has a size of 1130 * 312mm, which can be rotated 120 degrees.
  • LED worklight: Off, Low, High.
  • Power supply:
    • 220-240 Vac, 50/60 Hz, 10A max.
    • 100-240 Vac, 50/60 Hz, 10A max
    • 100-120 Vac, 50/60 Hz, 10A max
  • AC power cord length: 5m.
  • Backup battery: Li-Ion, 12 VDC, 16Ah (or 32Ah 2 batteries). Use at least 90 minutes / 1 battery. 180 minutes / 2 batteries.
  • Charging time: <12h.
  • Output of auxiliary power connector: 3A/socket. Or 5A for 4 outlets.
  • Supported connection ports: RS-232C, 2 RJ-45 (LAN) ports, 4 USB ports.
  • Allowable operating temperature: 10 ~ 40°C.
  • Allowable operating humidity: 15% ~ 95% (noncondensing).
  • Permissible operating pressure: 70 ~ 106.7 kPa.
  • Waterproof and dustproof standard: IPX1.

Anesthesia machine parameters:

  • Support 2 vaporizer ports, Selectatec / Plug-in standard.
  • Anesthesia: Halothane, Isoflurane, Sevoflurane, Desflurane.
  • Measurement range of anesthetic gas consumption: 0-3000ml, accuracy ±2 mL or ±15%.
  • Anesthesia vaporizer rate:
    • Desflurane: 0 ~ 900 ml/h
    • Sevoflurane: 0 ~ 450 ml/h
    • Enflurane, Isoflurane and Halothane: 0 ~ 250ml/h.
    • Accuracy: ±2ml/h or ±15% of measured value, whichever is greater.
  • Flowpause function adjustable 1-2 minutes.
  • Volume of breathing block: 1800ml (ventilator) or 1950ml (manual).
  • CO2 absorber capacity: 1500ml or 1 Pre-pak.
  • Supports 2 types of absorbers: Pre-pak or Loose-Fill.
  • There is a removable 6ml water trap for the CO2 absorber.
  • Inspiratory pressure measurement limit: -2 ~ 100 cmH2O. Accuracy: ± 2% FS.
  • 2 Flow sensor type differential pressure at the inspiratory and expiratory ports.
  • Galvanic cell Oxygen sensor, FiO2 18%-100%. ± 2.5%. Response ≤ 20s.
  • Diameter of connectors: 22mmOD/15mmID. Anesthesia outlet port: 30mm OD
  • Switch to switch 2 modes of mechanical ventilation – bag breathing.
  • Valve APL 5~75 cmH2O. Adjustment rotation 330 degrees ± 10. Feedback ≥ 30 cmH2O.
  • The system keeps the breathing system temperature stable at 35°C (when the machine is set at 20°C).
  • All parts of the exhalation end are autoclavable (except the sensors).
  • Compliance of the whole respiratory system: ≤ 2 mL/cmH2O ~ ≤ 4 mL/cmH2O.
  • Breathing system impedance: ≤ 6 cmH2O (both Automatic and Manual mode).
  • System leakage: ≤ 150 mL @ 3 kPa.
  • Safety pressure limit on breathing line: 110 ± 10 cmH2O @ 10 – 110 L/min.

Ventilation settings:

  • Patient Size: Adult, Child, Neonate.
  • Tidal volume:10~1500 mL (volume mode) or 5~1500 mL (pressure mode). TV/IBW display is available.
  • Pinsp: 5~90 ​​cmH2O.
  • Plimit: 10~100cmH2O.
  • ∆Psupp 3~60 cmH2O.
  • Respiration Rate: 4 ~ 100 bpm.
  • I:E: 4:1 ~ 1:8.
  • Tpause: OFF, 5% – 60%.
  • Tinsp: 0.2 – 10.0 s.
  • Trigger window: 5% – 90%.
  • Flow trigger: 0.2 ~ 15 L/min.
  • Pressure trigger: -20 ~ -1 cmH2O.
  • Exp%: 5% – 80%.
  • Min Rate: 2 – 60 bpm.
  • Tslope: 0.0 – 2.0 s.
  • Apnea I:E: 4:1~1:8.
  • ∆Papnea: 3 – 60 cmH2O.
  • Phigh: 3 to 90 cmH2O.
  • Plow: 3 to 50 cmH2O.
  • Thigh: 0.2 to 10.0 s.
  • Tlow: 0.2 to 10.0 s.
  • MV%: 25% to 350%.
  • PEEP: OFF, 0~50 cmH2O. Electronic Control.
  • Pressure limit of central air source: 280 to 600 kPa. Standard DIN/NIST gas head.
  • Inlet gas pressure limit: Air/Oxygen: 6.9 ~ 20 Mpa; N2O:4.2 ~ 6 Mpa.
  • Maximum flow rate: 180L/min + Fresh gas flow.
  • Oxygen supply failure alarm: ≤ 220 kPa.

Monitoring parameters:

  • Minute Volume: 0~100 L/min.
  • Tidal volume:0 ~ 3000 mL/min.
  • FiO2: 18% – 100%.
  • Ppeak/ Pmean/ Pplateau: -20 ~ 120 cmH2O.
  • PEEP: 0 ~ 70 cmH2O.
  • I:E: 4:1 ~ 1:10
  • Resitance (R): 0 ~ 600 cmH2O/(L/s).
  • Compliance (C): 0 ~ 300 ml/cmH2O.
  • Rate: 0 ~ 150 bpm.
  • Trend: 48 hours.
  • Screenshots: up to 50 photos.
  • Event log: 10000 events.

Download: A8_Brochure ENG_20200421_s
