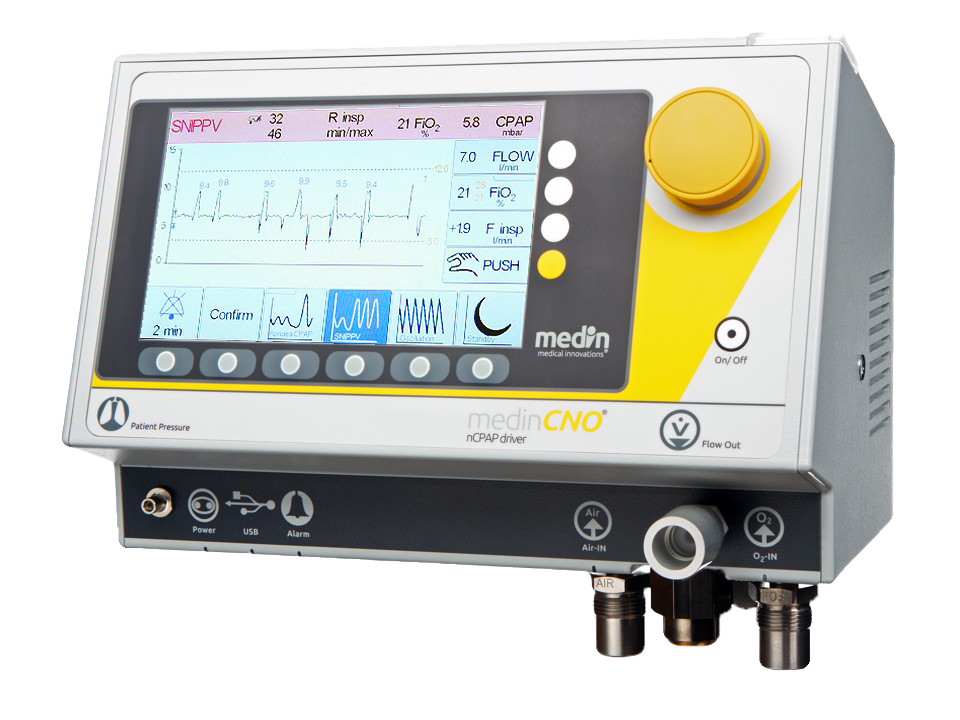

medinCNO

1. The main machine includes the following ventilation modes:

 CPAP: Continuous positive airway pressure ventilation via the nose

 Apnea CPAP: Continuous positive airway pressure ventilation with apnea notification

 NIPPV: Dual-level continuous positive airway pressure ventilation via the nose

 SNIPPV: Dual-level continuous positive airway pressure ventilation via the nose, synchronized with the patient's inspiratory and inspiratory cycles

 Oscillation: High-frequency oscillatory ventilation via the nose

 Standby: Temporary ventilation pause mode.

2. Main Technical Specifications:

- The main unit has a 7" color LCD screen displaying parameters and breathing waveforms.

- The air mixer is precisely adjustable from 21% to 100%, with digital mixing.

- Features high-frequency oscillatory ventilation (high-frequency vibration ventilation through the nose).

- Features a manual push function: minimum: 0 liters/minute, maximum: 17.5 liters/minute (basic flow + push flow).

- Leak-Assist function: compensates for air leakage in CPAP mode, +- 2 liters/minute to ensure target pressure values.

- Has USB and RS232 communication ports.

- Power supply: 100 - 240 VAC, 50/60Hz.
