Description

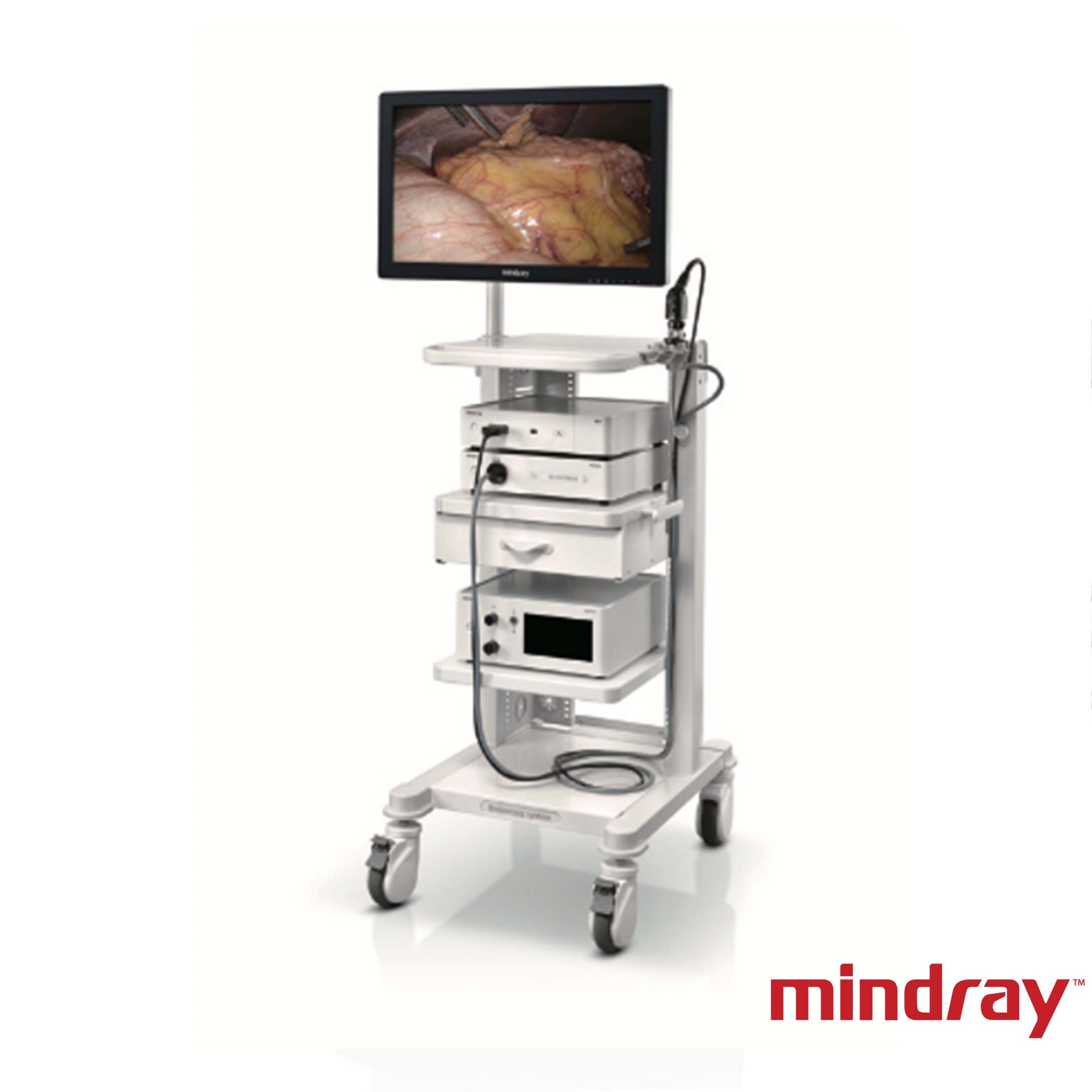

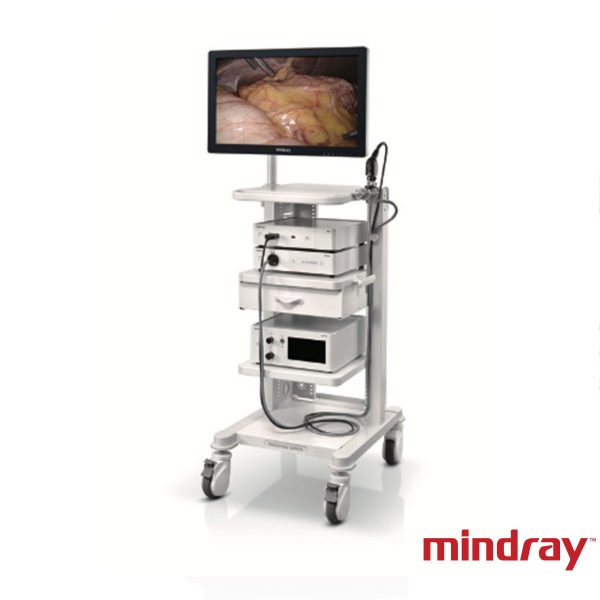

The Mindray full HD 3-chip camera system delivers high definition and exceptional image quality for you to distinguish anatomy across all minimally invasive procedures, while providing a simple, yet personalized experience with USB storage function. It features a 1920x1080p resolution delivering optimal color rendition and brightness, while utilizing advanced CMOS technology and premium optics to provide a clear, bright image to improve patient outcomes.
Three-chip CMOS Full HD Camera Head:
Better light sensitivity
Less noise and power consumption
Higher stability for hemorrhage
– 26” Full HD Monitor
– CCU and Camera head: Three-chip CMOS realize zooming and focusing simultaneously. Two times optical magnification ratio allows the doctors to appreciate more details. F = 14mm – 30mm Focal length enables cross-specialty use
– Rigid Laparoscope:
Direction of view: 30/0°
Field of Working: 80°
Depth of view: 3-200mm
Working length: 321mm
– Light Source HB200L LED
Color temperature 6500K
Lamp life > 40000 hours
Auto detection of light guide cable
Compatible with other brand cables
– CO2 Insufflator HS-50 F
Max flow rate 50L/min
7” touch screen
5 modes selectable (Adult, pediatric, Bariatric, Retroperitouneum, User customize)
Automatically detect veress needle mode
Audible and visible alarm message
Smoke evacuation function
Heating function
– Trolley
